CT003 134.2KHz Animal Temperature Sensitive Reader

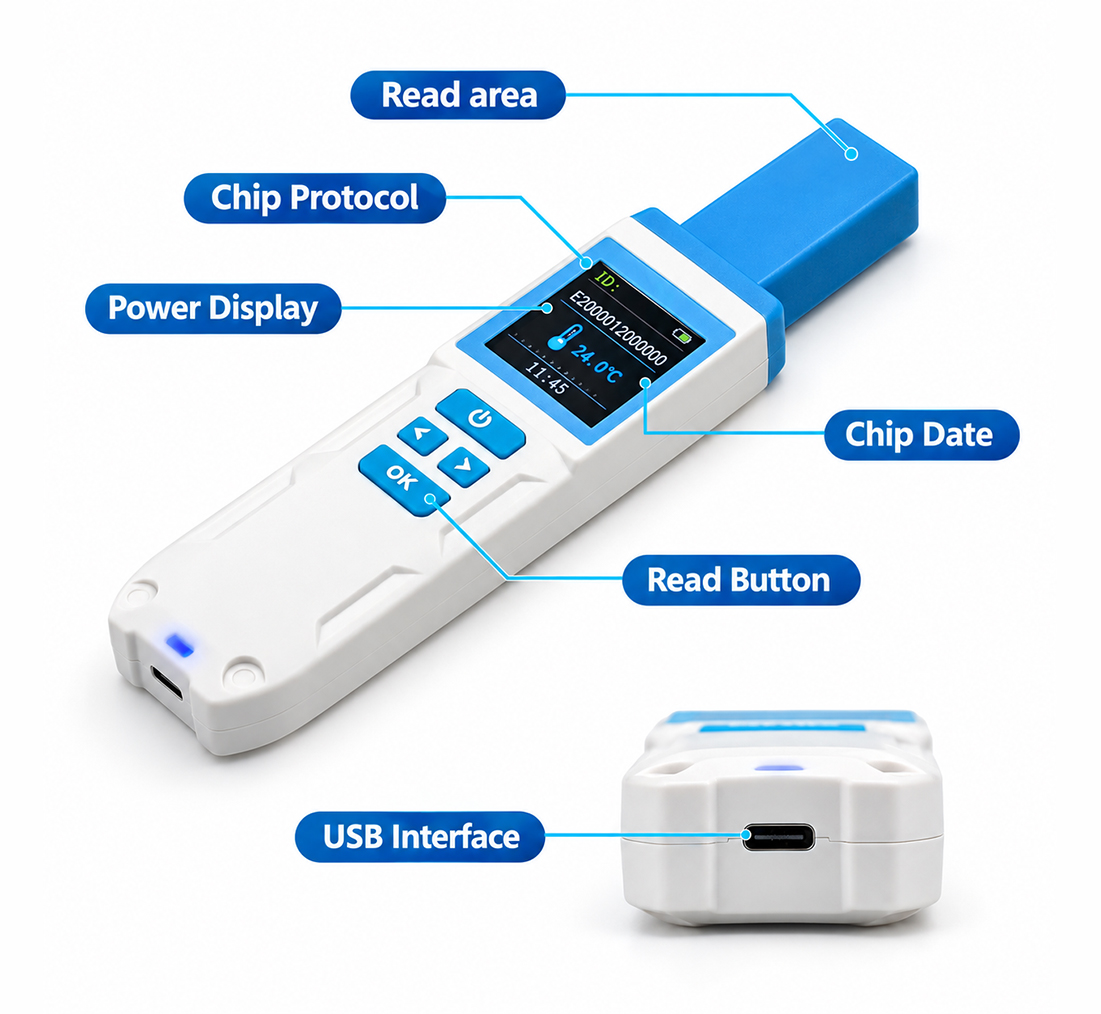

Portable 134.2KHz animal RFID reader with Bluetooth, TFT screen, and ISO11784/11785 support for pets and livestock.
- Frequency
- 134.2KHz
- Material
- See specification
- Size
- 167 × 37 × 20mm
- Minimum order
- On quote
Indicative price$360per unit · final figure confirmed on quotation
Quotations are prepared per format: chip, quantity and encoding format decide the price.
The minimum order shown is a starting point, confirmed on the quote.
Specification
| Product Name | CT003 134.2KHz Animal Temperature Sensitive Reader |
|---|---|
| Operating Frequency | 134.2KHz |
| Supported Chip Types | ISO 11784/11785 Compliant FDX-B FDX-A HDX Microchips |
| Reading Performance | FDX-B Glass Tag 2.12×12mm: Up to 15cm |
| Reading Time | Less than 1 second |
| Display Screen | 1.54-inch Color TFT Screen 240 × 240 Pixels |
| Indicators | Buzzer and LED Indicator |
| Power Supply | 3.7V 1500mAh Rechargeable Lithium Battery |
| Power Consumption | Operating Current: 400mA (Maximum) |
| Memory Storage | 30,000 Records (Time + Tag ID Data) |
| Data Communication | USB Cable Bluetooth 4.0 HID / BLE Switchable |
| Battery Life | Continuous Use Up to 16 Hours |
| Menu Language | English Standard Custom Languages Available |

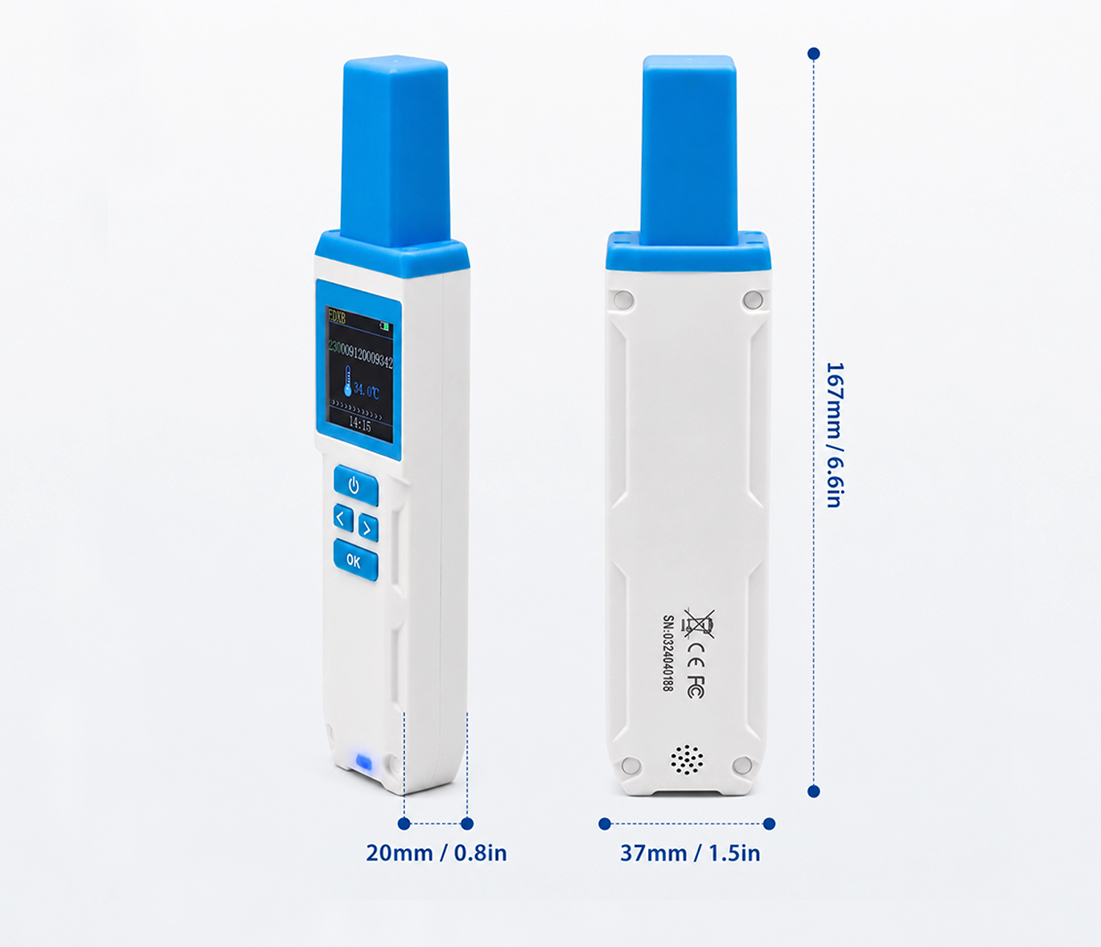

| Dimensions | 167 × 37 × 20mm |
| Weight | 105g |
| Protection Rating | IP54 |
| Operating Temperature | -20°C to +80°C |
| Certifications | CE, FCC, RoHS |
| Applications | Pet Identification Veterinary Clinics Animal Shelters Livestock Management Breeding Farms Animal Traceability |
| OEM & Customization | Custom Logo Printing Language Customization Bulk OEM Supply Factory Direct Support |
