Handheld · 42

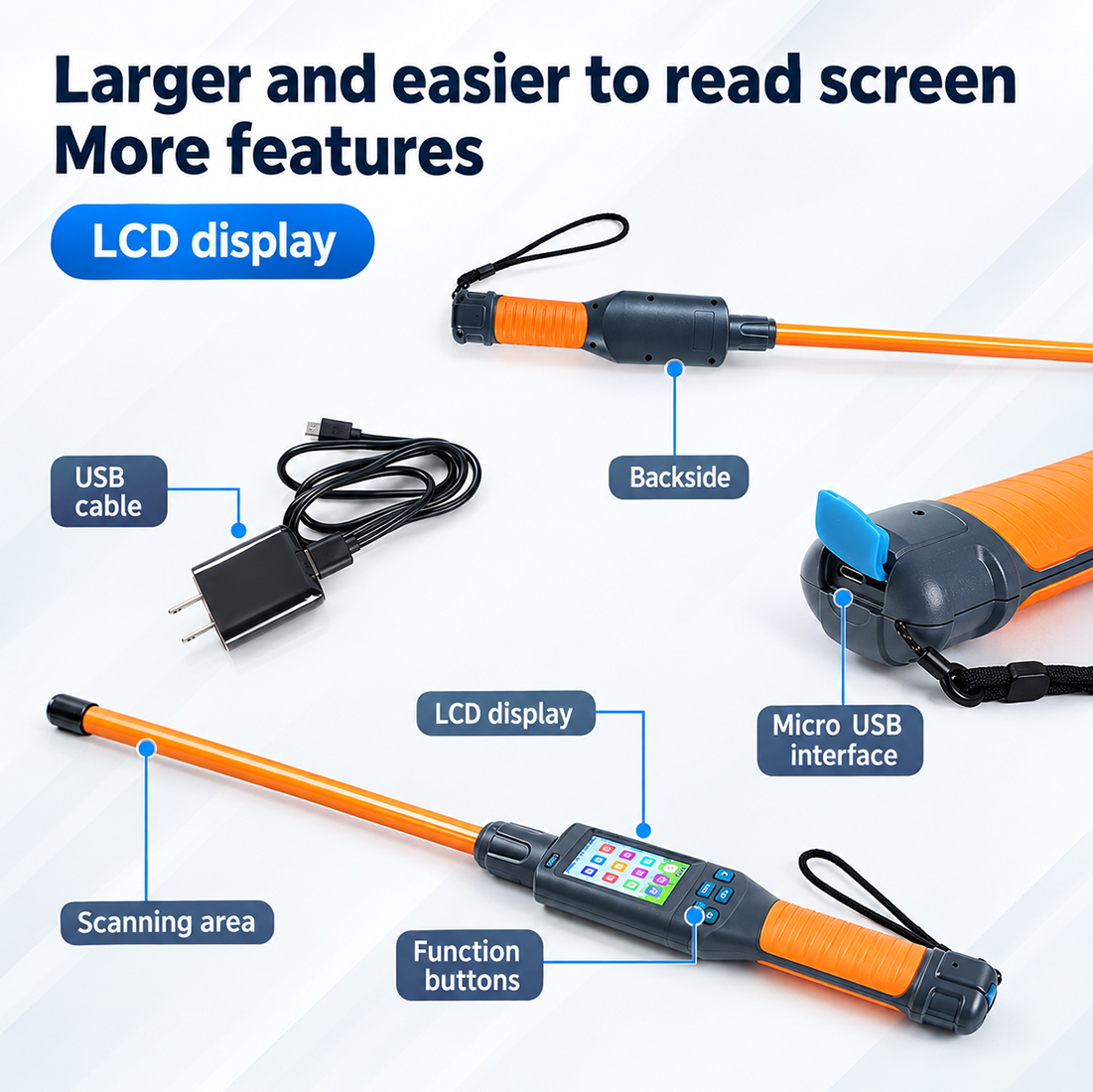

S02 HDX FDX RFID Stick Reader
Handheld 134.2KHz RFID stick reader for livestock management. Supports FDX-B, HDX, Android, GPS, Bluetooth, and camera.
- Frequency
- 134.2KHz
- Material
- See specification
- Size
- See specification
- Minimum order
- On quote
Indicative price$26per unit · final figure confirmed on quotation
Quotations are prepared per format: chip, quantity and encoding format decide the price.
The minimum order shown is a starting point, confirmed on the quote.
Specification
| Working Frequency | 134.2KHz |
|---|---|
| Label Format | FDX-B, FDX-A (ISO11784/85) |
| Sensing Distance | FDX-B: 2×12mm glass tube label ＞10cm 30mm animal ear tag ＞20cm FDX-A: 2×12mm glass tube label ＞10cm Note: Relevant to the card reader and usage environment |
| Standard | ISO11784/85 |
| Reading Time | Less than 100ms |
| Signal Indication | 480×320 High Brightness LCD, Buzzer |
| Power Supply | Lithium Battery |
| Power Consumption | 0.4W |
| Storage Capacity | 20,000 pieces of information (tag code + time) |
| Battery Life Capacity | More than 10,000 readings when fully charged |
| Battery Capacity | 3000mA |

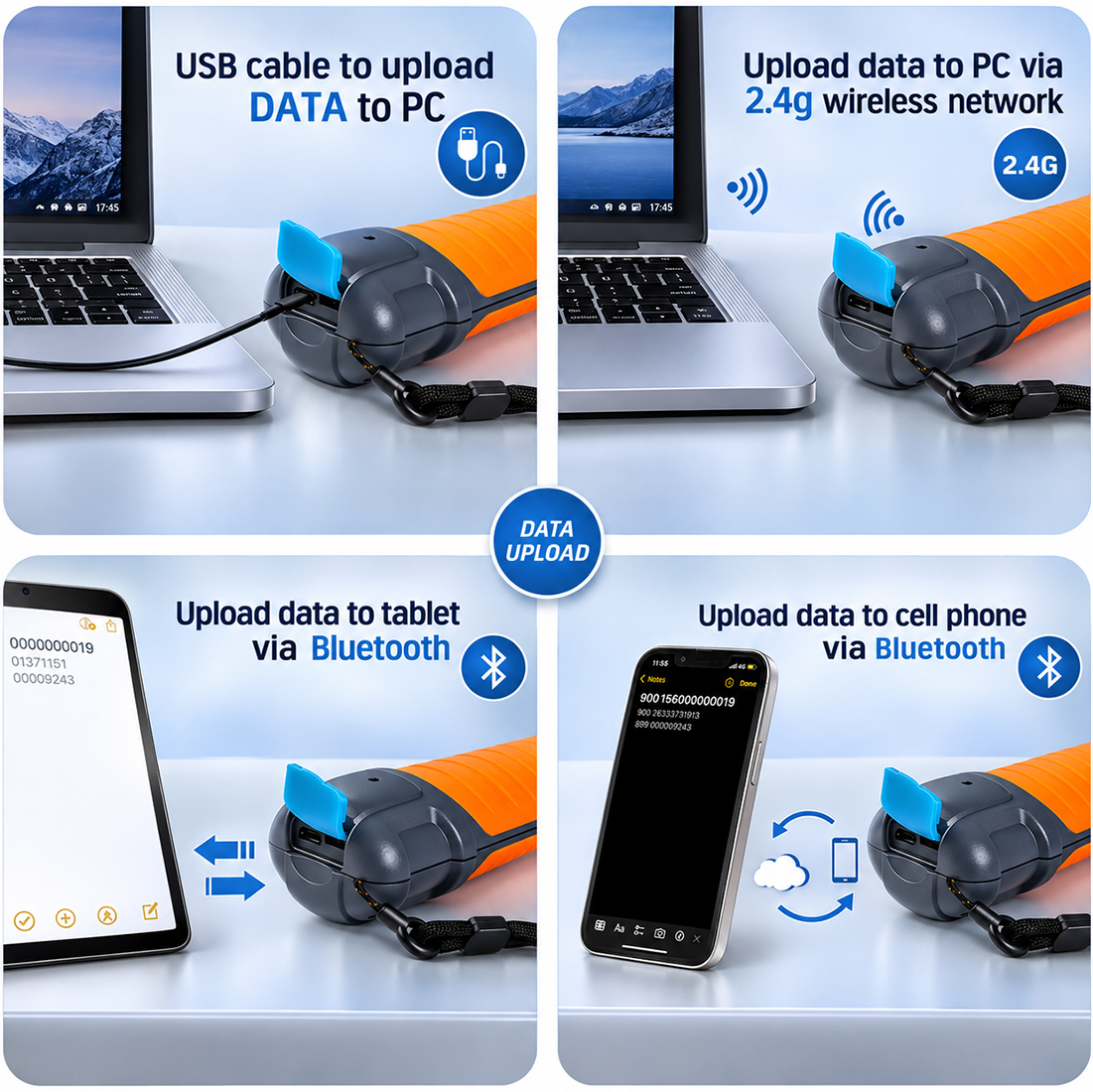

| Communication Interface | USB 2.0, Bluetooth |
