NFC & Tags · 13

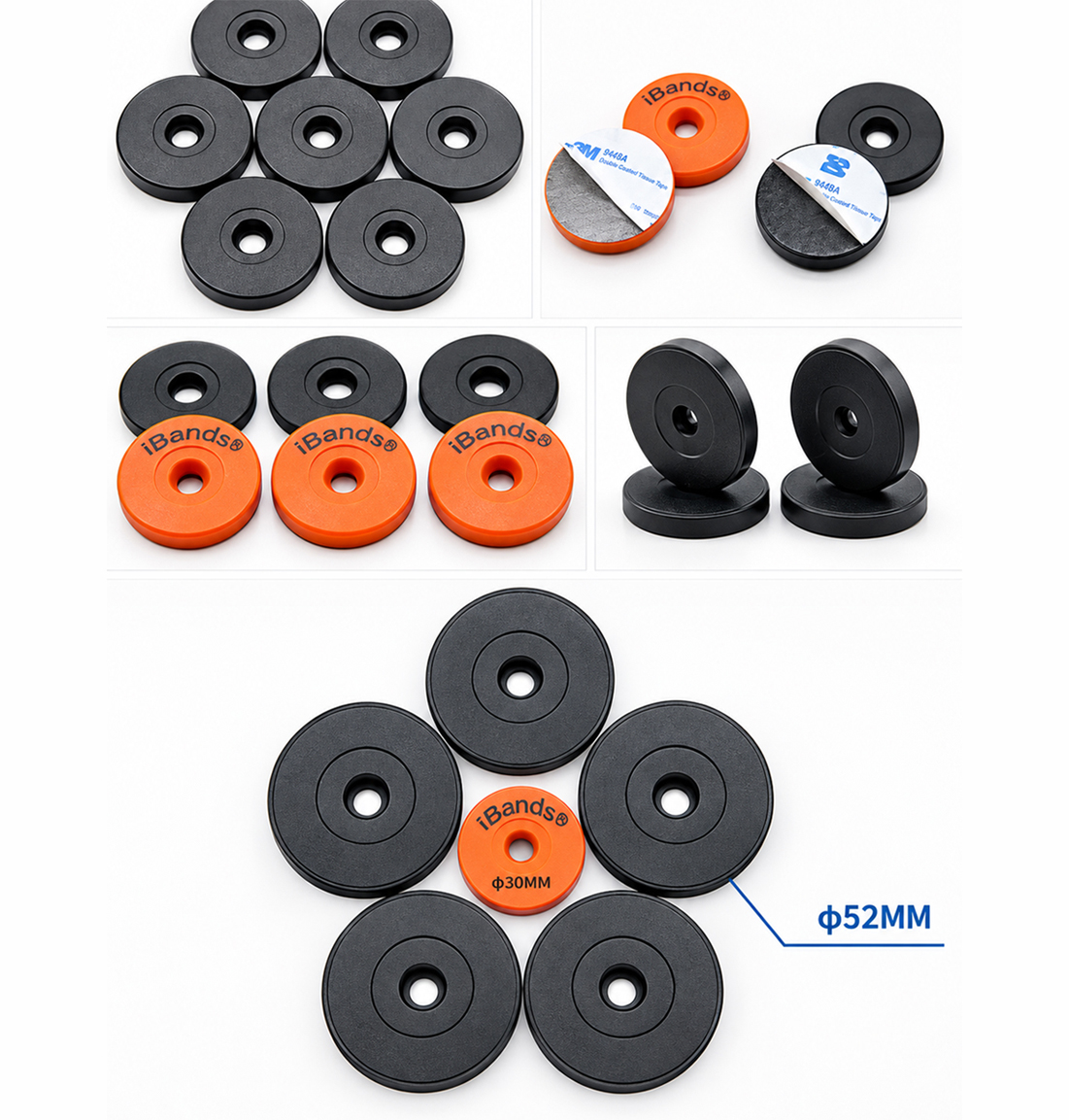

NTAG213 ABS Tags | RFID Patrol Label
Anti-metal RFID disc tags for asset tracking and harsh environments.
- Frequency
- 125 KHz 13.56 MHz 860–960 MHz
- Material
- ABS
- Size
- Φ25 mm Φ30 mm Φ35 mm Φ39 mm Φ52 mm (Tolerance: ±0.5 mm)
- Minimum order
- On quote
Indicative price$427per unit · final figure confirmed on quotation
Quotations are prepared per format: chip, quantity and encoding format decide the price.
The minimum order shown is a starting point, confirmed on the quote.
Specification
| Product Name | Waterproof RFID Patrol Tags |
|---|---|

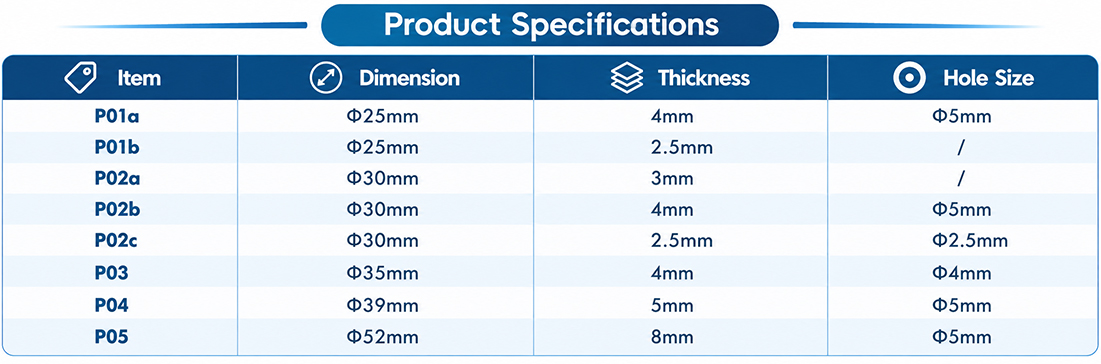

| Available Sizes | Φ25 mm Φ30 mm Φ35 mm Φ39 mm Φ52 mm (Tolerance: ±0.5 mm) |
| Material | ABS |
| Color Options | White Black Red Yellow Green Orange |
| Working Frequency | 125 KHz 13.56 MHz 860–960 MHz |
| Supported Protocols | ISO14443A ISO15693 ISO18000-6C |
| Memory Size | Depends on selected RFID chip |
| Operating Temperature | -40℃ to +85℃ |
| Storage Temperature | -55℃ to +100℃ |
| Operating Modes | Read & Write Read Only |
| Service Life | More than 10 years |
| Write Endurance | Up to 100,000 cycles |
| Customization & Artwork | Logo printing Serial number printing Chip encoding Data read-out configuration 3M adhesive backing With or without anti-metal layer |
| Reading Distance | Reading range depends on working environment and reader performance |
| Applications | Security patrol management Asset tracking Waste management Warehouse management Access control Indoor and outdoor harsh environments Metal surface mounting by screw |
| Key Features | Waterproof Moisture-proof Shock-proof High temperature resistant |
| Certification | EU CE Certified |
