Laundry & Textile · 6
PPS RFID laundry tag
The PPS RFID laundry tag is a durable, IP68-rated RFID tag designed for textile tracking in industrial laundry environments. Featuring PPS encapsulation and support for LF, HF, and UHF chips including UCODE 9, it is widely used for hotel linens, workwear, and reusable textile assets.
- Frequency
- See specification
- Material
- PPS housing on both sides
- Size

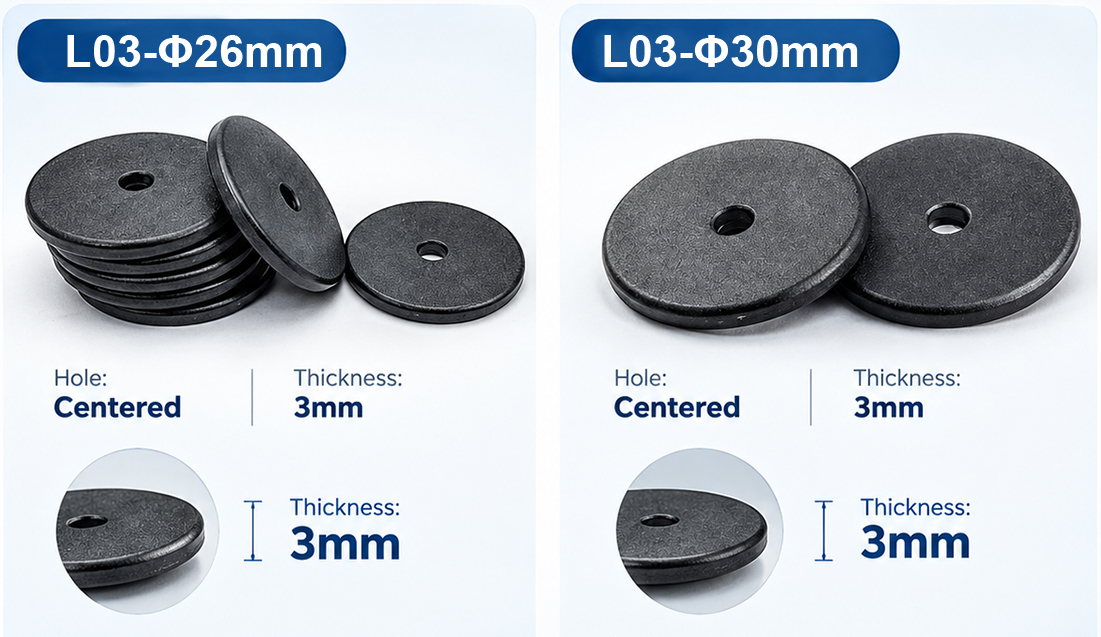

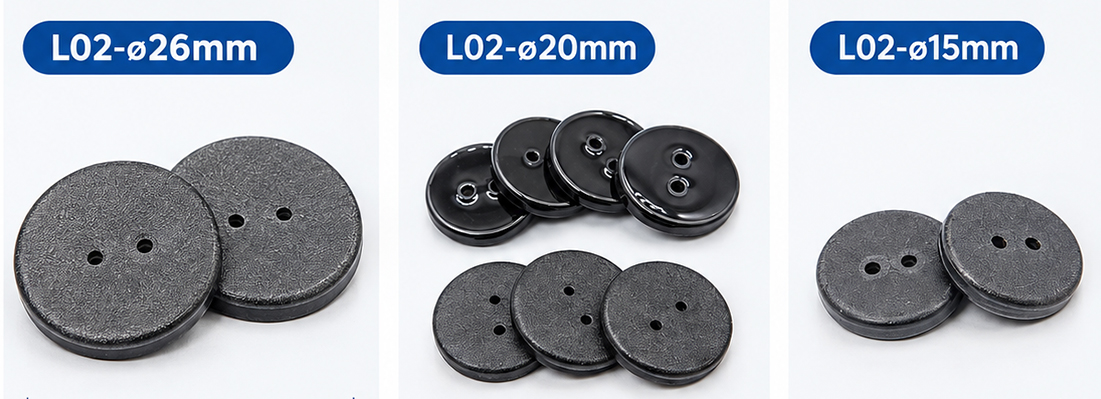

- Φ30 mm Φ28 mm Φ26 mm Φ24 mm Φ22 mm Φ20 mm Φ18 mm Φ15 mm Φ13 mm
- Minimum order
- On quote
Indicative price$146per unit · final figure confirmed on quotation
Quotations are prepared per format: chip, quantity and encoding format decide the price.
The minimum order shown is a starting point, confirmed on the quote.
Specification
| Product Name | NTAG213 PPS Button Laundry Tag |
|---|---|
| Available Dimensions | Φ30 mm Φ28 mm Φ26 mm Φ24 mm Φ22 mm Φ20 mm Φ18 mm Φ15 mm Φ13 mm |
| Thickness | 3 mm |
| Material | PPS housing on both sides |
| Chip Options | TK4100 EM4200 EM4305 T5577 Fudan 1K MIFARE S50 / S70 NTAG213 / 215 / 216 NXP UCODE 9 Other compatible RFID chips available |
| Activation Field Strength (25°C) | Read/write activation field strength: 112 dBμA/m / 115 dBμA/m (typical) |
| Programming Cycles | Up to 100,000 cycles (at 25°C) |
| Data Retention | More than 10 years at 55°C |
| Tag Identification Speed | Up to 50 tags per second (depends on reader and antenna performance) |
| Protection Rating | IP68 waterproof standard Water pressure: 45 bar for 10 hours |
| Operating Temperature | -25°C to +90°C |
| Mechanical Strength | Axial compression strength: 1000 N Radial compression strength: 500 N |
| Chemical Resistance | Resistant to chemicals commonly used in laundry and dry-cleaning processes |
| Applications | Hotel linen management Industrial textile tracking Uniform identification Canvas and pallet tagging Workwear and garment management |
