180 Handheld RFID Animal Tag Reader

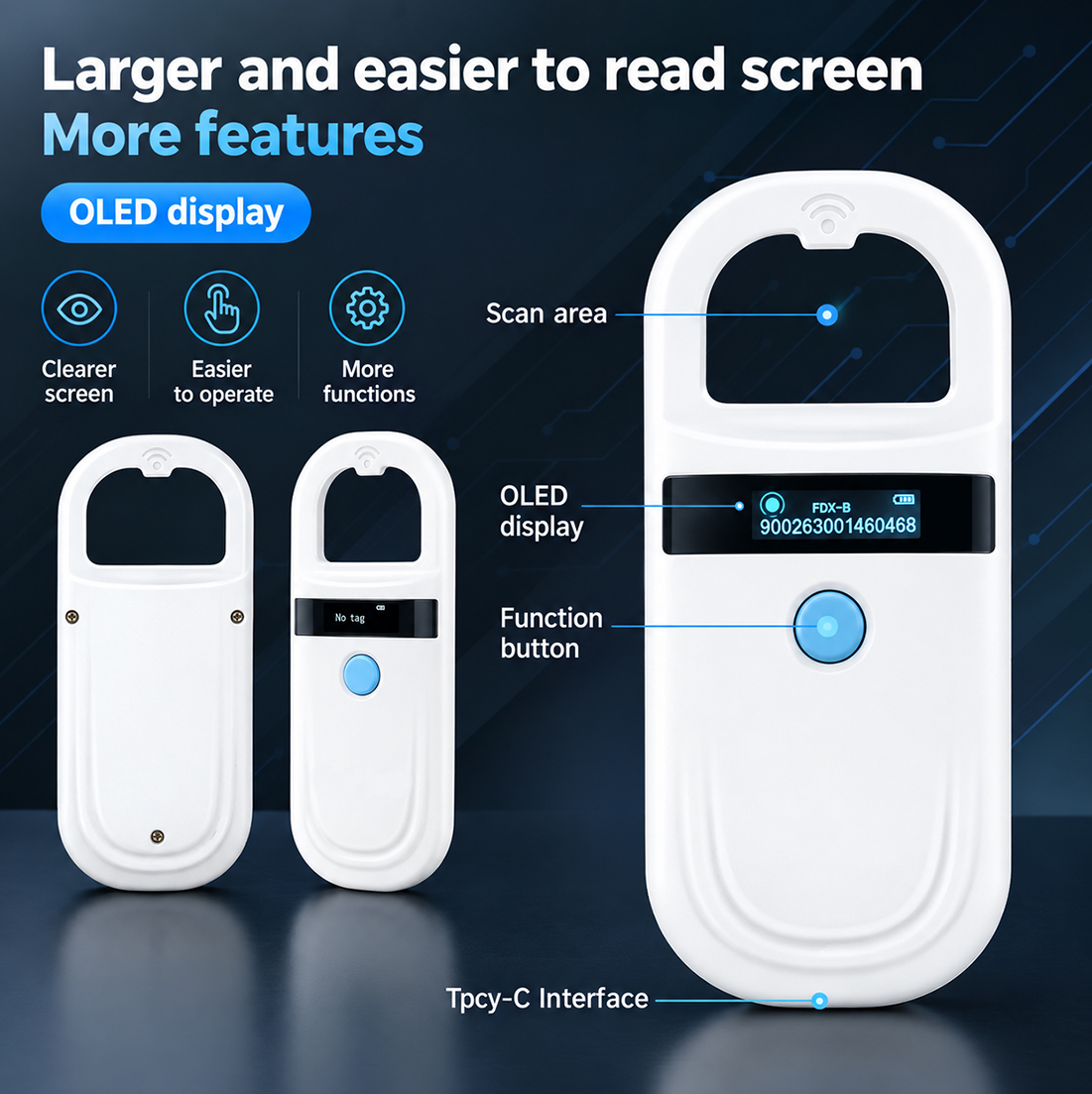

The PT-180 handheld RFID reader is a compact and reliable low-frequency RFID scanner designed for animal identification and livestock management applications. Supporting both 134.2KHz and 125KHz frequencies, the device is compatible with ISO11784/85 FDX-B tags and EMID tags commonly used in cattle, sheep, pigs, pets, and other livestock tracking systems.
- Frequency
- 134.2KHz / 125KHz
- Material
- See specification
- Size
- 135 × 60 × 14 mm
- Minimum order
- On quote
Indicative price$163per unit · final figure confirmed on quotation
Quotations are prepared per format: chip, quantity and encoding format decide the price.
The minimum order shown is a starting point, confirmed on the quote.
Specification
| Product Name | 180 Handheld RFID Animal Tag Reader |
|---|---|
| Function | 180C: With memory storage-256 data, without bluetooth 180D: Without memory storage, without bluetooth 180BT:With memory storage-256 data, with bluetooth |
| Operating Frequency | 134.2KHz / 125KHz |
| Supported Tag Formats | ISO11784/85 FDX-B EMID |
| Identifying Distance | 0–15 cm (depending on tag performance) |
| Read Time | 100 ms |
| Memory Storage | 256 records |
| Charging Method | USB Charging |
| Charging Voltage | 5V |
| Certification | CE |
| Operating Temperature | -30℃ to 70℃ |
| Product Size | 135 × 60 × 14 mm |
| Weight | 110 g |
| Applications | Livestock management Pet microchip identification Animal tracking Veterinary clinics Breeding farms |
| Features | Portable handheld design Fast and accurate reading USB rechargeable Easy operation Stable RFID performance Wide temperature resistance |
