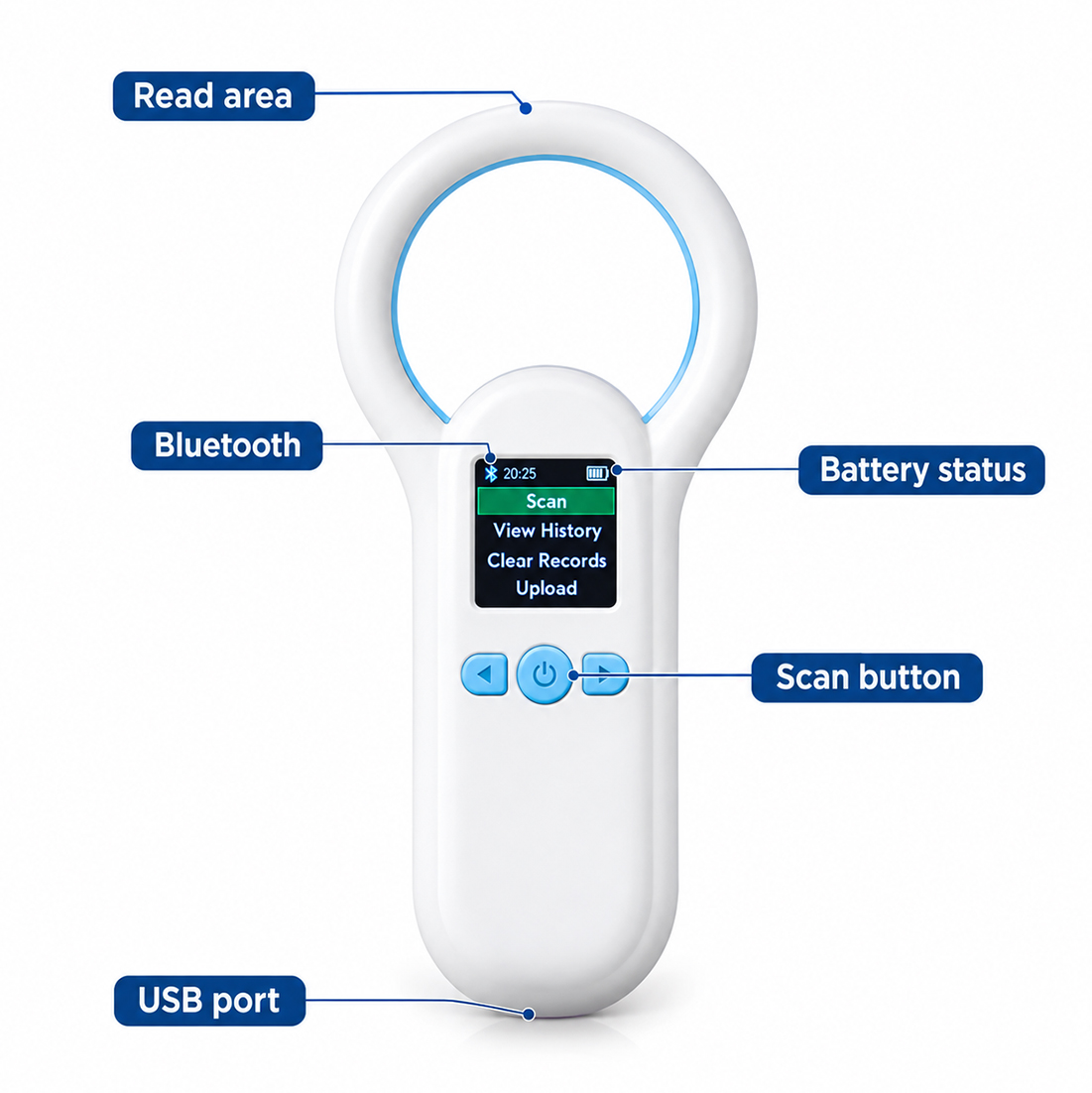

S20 RFID Handheld Reader 125KHz / 134.2KHz
The S20 RFID handheld reader supports 125KHz and 134.2KHz LF RFID with FDX-B and EMID protocols. It offers fast reading (<100ms), up to 200cm read range, and stable wireless communication via 2.4G and Bluetooth. Designed for livestock identification and asset tracking, it features a 1.44-inch TFT screen, portable design, and 800mAh rechargeable battery. Ideal for farms, veterinary systems, and industrial tracking applications.
- Frequency
- 134.2KHz / 125KHz
- Material
- See specification
- Size
- 182mm × 77mm × 17.5mm
- Minimum order
- On quote
Indicative price$484per unit · final figure confirmed on quotation
Quotations are prepared per format: chip, quantity and encoding format decide the price.
The minimum order shown is a starting point, confirmed on the quote.
Specification
| Product Model | S20 RFID Handheld Reader |
|---|---|
| Operating Frequency | 134.2KHz / 125KHz |
| Labeling Protocols | FDX-B, EMID |
| Read & Write Distance | 0–200 cm (depends on tag type) |
| Read Time | < 100 ms |
| Wireless Distance | 0–80 m (open field) |
| Bluetooth Distance | 0–20 m (open field) |
| Display & Signal | 1.44-inch TFT LCD screen, buzzer |
| Battery | 3.7V 800mAh lithium battery |
| Storage Capacity | 500 records |
| Communication Interfaces | USB 2.0, 2.4G wireless, Bluetooth (optional) |
| Language | English / Chinese (customizable) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -30°C to 70°C |
| Humidity | 5%–95% non-condensing |
| Product Dimensions | 182mm × 77mm × 17.5mm |
| Net Weight | 134.1g |
