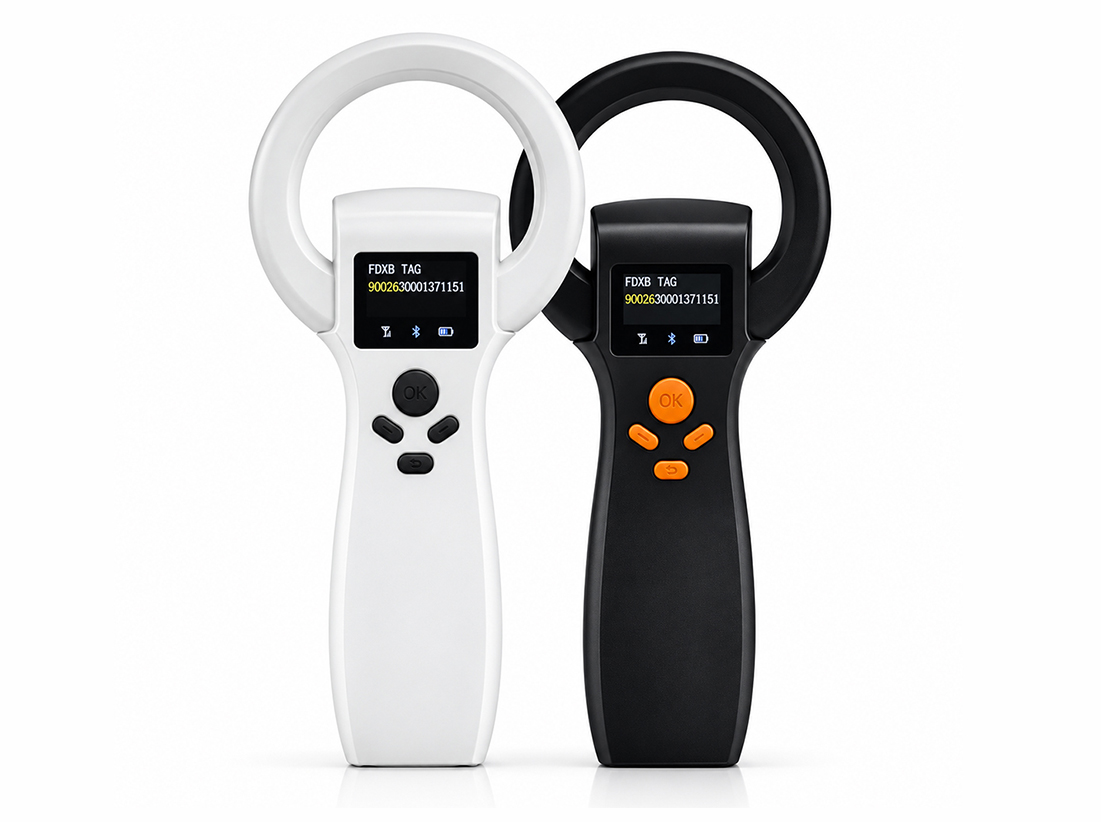

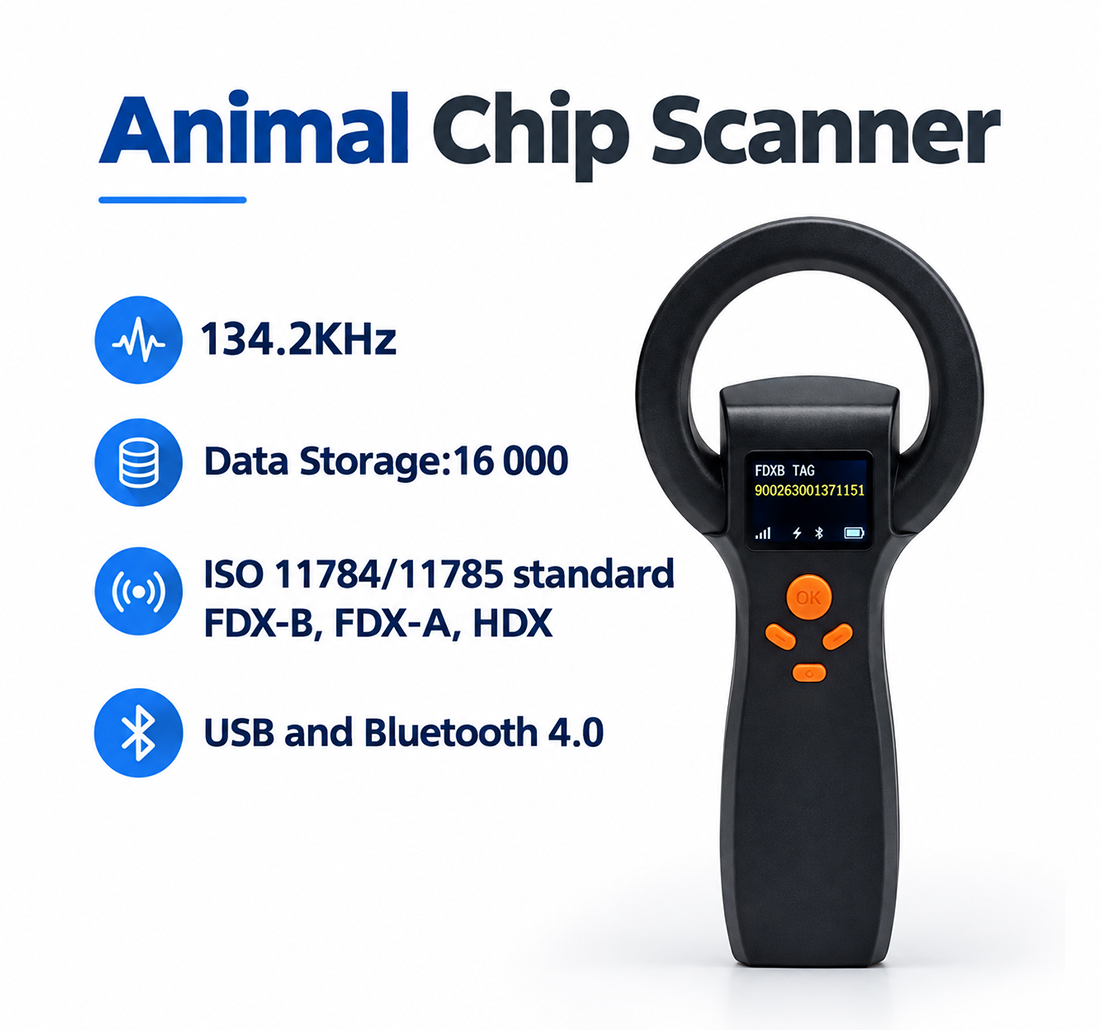

L401 134.2KHz Animal RFID Reader
Compact 134.2KHz animal RFID reader with Bluetooth and USB. Supports FDX-B, HDX, and ISO11784/11785 protocols.
- Frequency
- 134.2KHz
- Material
- See specification
- Size
- 190 × 90 × 22mm
- Minimum order
- On quote
Indicative price$53per unit · final figure confirmed on quotation
Quotations are prepared per format: chip, quantity and encoding format decide the price.
The minimum order shown is a starting point, confirmed on the quote.
Specification
| Model Name | L401 |
|---|---|
| Product Type | 134.2KHz Handheld Animal RFID Reader |
| Operating Frequency | 134.2KHz |
| Supported Protocols | ISO11784/11785 FDX-B FDX-A HDX |
| Reading Time | Less than 1 Second |
| Reading Distance | Animal Ear Tag: Up to 16cm Animal Microchip: Up to 8cm |
| Display | 1.14-inch Color Screen 240 × 130 Pixels |
| Signal Indication | Buzzer |
| Power Supply | 3.7V 1000mAh Rechargeable Battery |
| Power Consumption | Working Current: 500mA (Max) |
| Data Storage | 16,000 Records |
| Communication Mode | USB Bluetooth 4.0 |
| Language | English Chinese |
| Dimensions | 190 × 90 × 22mm |
| Weight | 95g |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +70°C |
| Applications | Animal Identification Pet Microchip Scanning Livestock Tracking Veterinary Clinics Breeding Farm Management Animal Traceability Systems |
| OEM & Custom Services | OEM Logo Printing Bulk Supply Customized Packaging Factory Direct Support |
