UHF RFID Anti Metal Tray Tags
Durable UHF RFID anti metal tags designed for pallets and asset management. ABS housing, long read range, stable performance on metal surfaces.
- Frequency
- UHF: 860 – 960 MHz Optional HF: 13.56 MHz
- Material
- ABS housing Foam adhesive layer Anti-metal shielding material Screw mounting installation
- Size

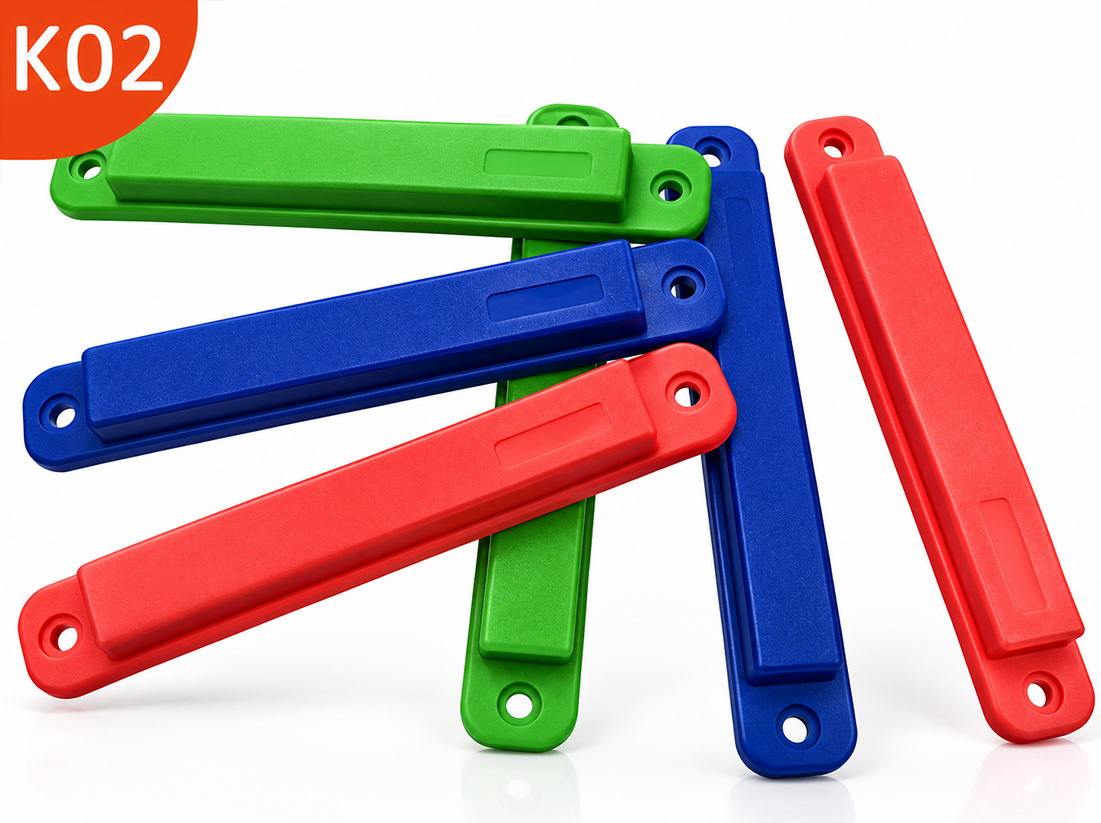

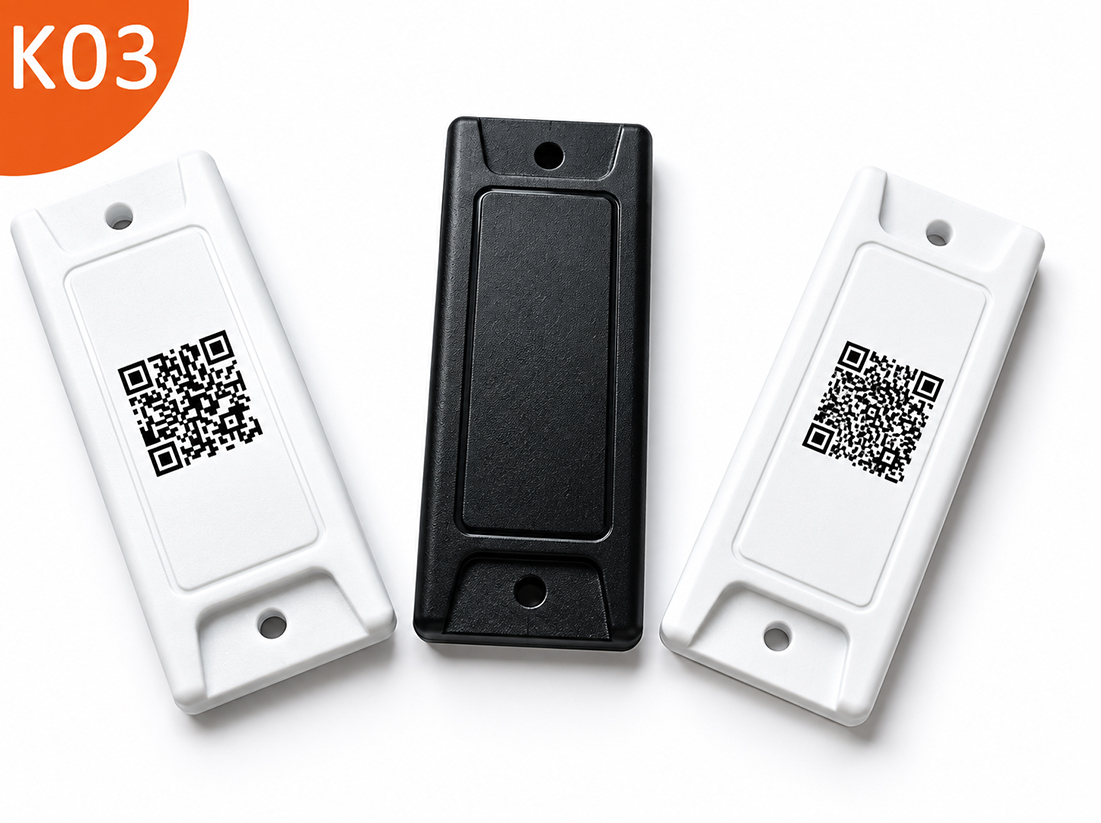

- K01: 118 × 33 × 12 mm K02: 135 × 22 × 12 mm K03: 78 × 31 × 8 mm K04: 62 × 32 × 10 mm
- Minimum order
- On quote
Indicative price$201per unit · final figure confirmed on quotation
Quotations are prepared per format: chip, quantity and encoding format decide the price.
The minimum order shown is a starting point, confirmed on the quote.
Specification
| Product Name | UHF Tray Tag / ABS Pallet Tag |
|---|---|
| Tag Type | UHF RFID anti-metal tag Designed for metal surface mounting |
| Available Sizes | K01: 118 × 33 × 12 mm K02: 135 × 22 × 12 mm K03: 78 × 31 × 8 mm K04: 62 × 32 × 10 mm |
| Material | ABS housing Foam adhesive layer Anti-metal shielding material Screw mounting installation |
| Operating Frequency | UHF: 860 – 960 MHz Optional HF: 13.56 MHz |
| Supported Chips | Alien Higgs3 NXP UCODE 9 ICODE SLi-X Ultralight EV1 MIFARE 1K / 4K NTAG213 / 216 F08 Other compatible RFID chips available |
| Supported Protocols | ISO 18000-6C ISO 14443A ISO 15693 |
| Data Retention & Programming | Data retention: more than 10 years Programming cycles: ≥ 100,000 times |
| Temperature Resistance | Storage temperature: -30°C to +160°C Operating temperature: -20°C to +140°C |
| Craft Options | Logo printing Sequential number printing UID printing EPC encoding Custom serialization |
| Packaging | 20 pcs per bag 1000 pcs per carton (customizable) Carton size: 53 × 29 × 32 cm |
| Applications | Asset management Reusable plastic pallet tracking Industrial logistics management Warehouse inventory systems |
